Stage Acquisition Menu

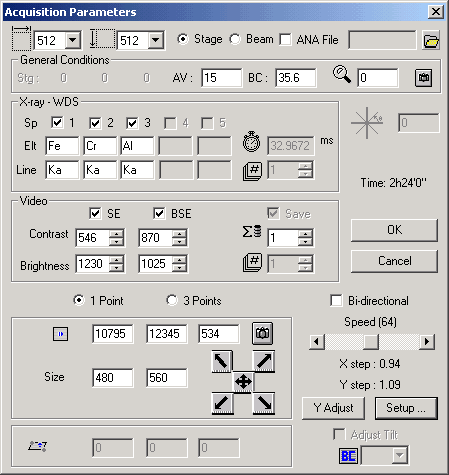

Acquisition Parameters

· Definition of the image resolution.

· Selection of the video signals and X-ray channels.

· Definition of the area to be scanned by the stage mapping. This can be chosen using one central point in the image or three points (2 corners).

· Definition of the number of frames and the number of measurements per pixel.

· Automatic adjustment of the Z during acquisition.

· Bi-directional Scan

· Note the X step which is below a micron.
